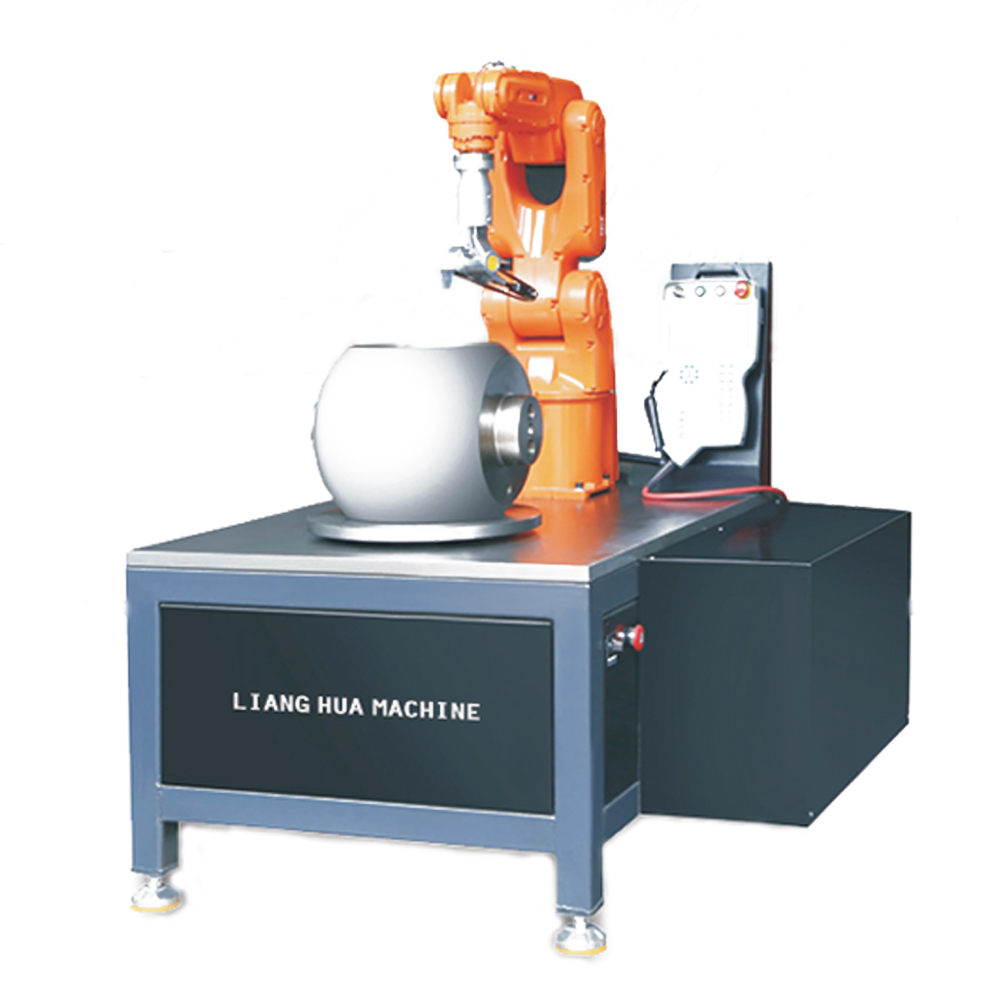

The auto ball edge trimmer is a high-efficiency automatic machine designed for trimming and shaping spherical workpieces (e.g., valve balls, round components). It features a rotating cutting head with precision blades, enabling fast and accurate edge trimming, deburring, and surface finishing on ball-shaped parts. Widely used in machinery, automotive, and valve industries, it ensures consistent roundness, smooth edges, and high processing efficiency with easy operation and stable performance.
Technical specifications and technical parameters
| NO. | Equipment Name | Maximum sphere hole diameter |
| 1 | The auto ball edge trimmer ABET200 | 2-8” |
| 2 | The auto ball edge trimmer ABET400 | 10-16” |
| 3 | The auto ball edge trimmer ABET750 | 18-28” |
The technical parameters of the auto ball edge trimmer ABET200 machine
| NO. | NAME | parameters |
| 1 | manipulator | 6kg（6 axis） |
| 2 | Pneumatic Paper Belt Machine | 20mm-400 |
| 3 | voltage | 380-220v |
| 4 | Base size | 1350x800x450 |
| 5 | sphere speed range | 10～200 Turn/min |
| 6 | Repeat positioning accuracy of manipulator | 0.05mm within |
| 7 | Rotating shaft motor power | 0.75kw |
| 8 | Manipulator operating system | GSHD |
| 9 | Size | 1650x1300x1750 |
| 10 | G.W | 850kg |
| 11 | Turntable reducer | 1:10 |
| 12 | frequency transformer | 1kw |
Key Features of ABET200 Auto Ball Edge Trimmer
The ABET200 auto ball edge trimmer features automatic operation, high trimming precision, and smooth edge finishing. It is widely used in valve ball and spherical parts processing, improving production efficiency and product quality.
