Technical Parameter

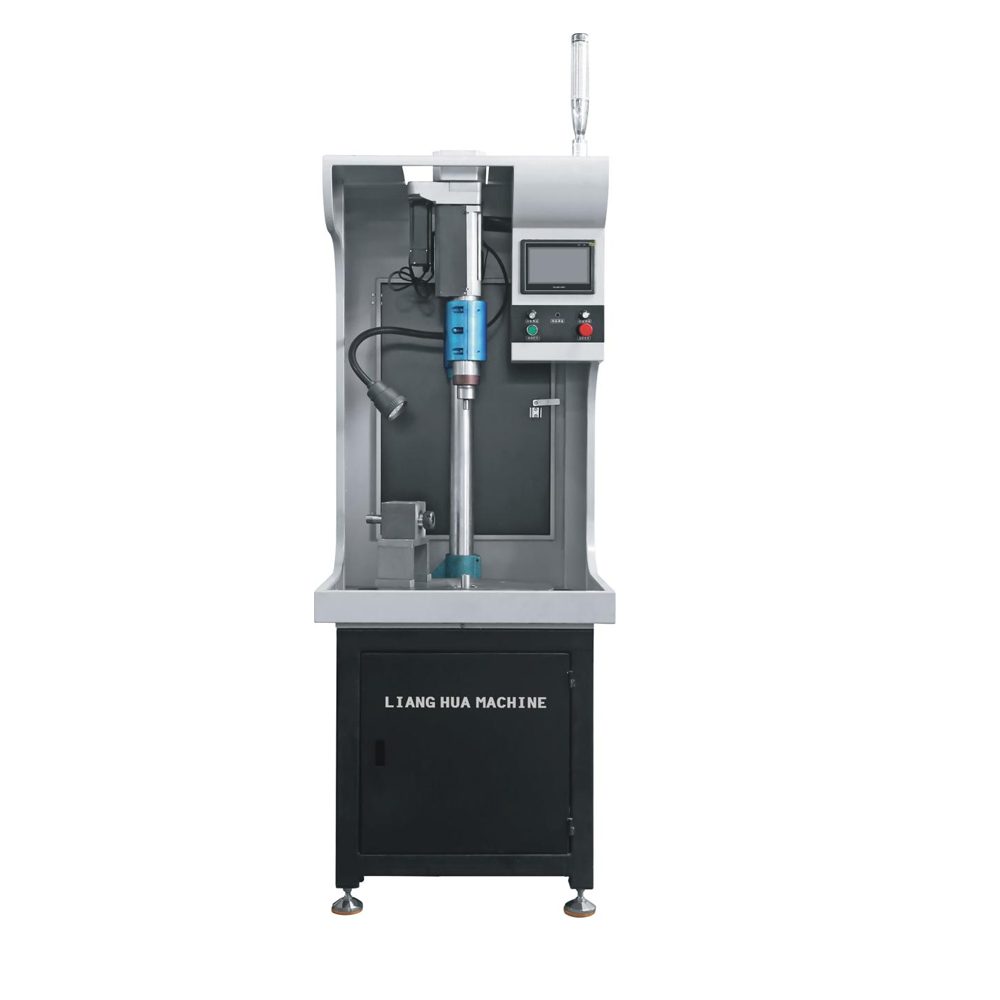

1.The technical parameters of the DF100 Single valve seat lapping
| NO. | Item | Data | |
| 1 | Processing range | 130mm | |
| 2 | Ball Bore Diameter（≈） | 20-100mm | |
| 3 | Cross adjustment of the X-axis | ≥100 | |
| 4 | Cross adjustment of the X-axis | ≥50 | |
| 5 | Seat speed range | 30-100Rpm | |
| 6 | Sphere speed range | 1-50Rpm | |
| 7 | Seat motor | 750w/6 | |
| 8 | Spherical Control Motor | 400w (Mig /Hosokawa) | |
| 9 | Control the motor up and down. | 600w(MIG servo motor) | |
| 10 | Machining precision | 100% matching of seat and sphere | |
| 11 | Lubrication system | fixed time self-lubrication | |
| 12 | Control system | PLC industrial control (He Chuan) | |
| 13 | Out size (length X width X height) | 700×850×1800mm | |
| 14 | Demand | The sphere must be machined to the roundness ≦0.01 | |
