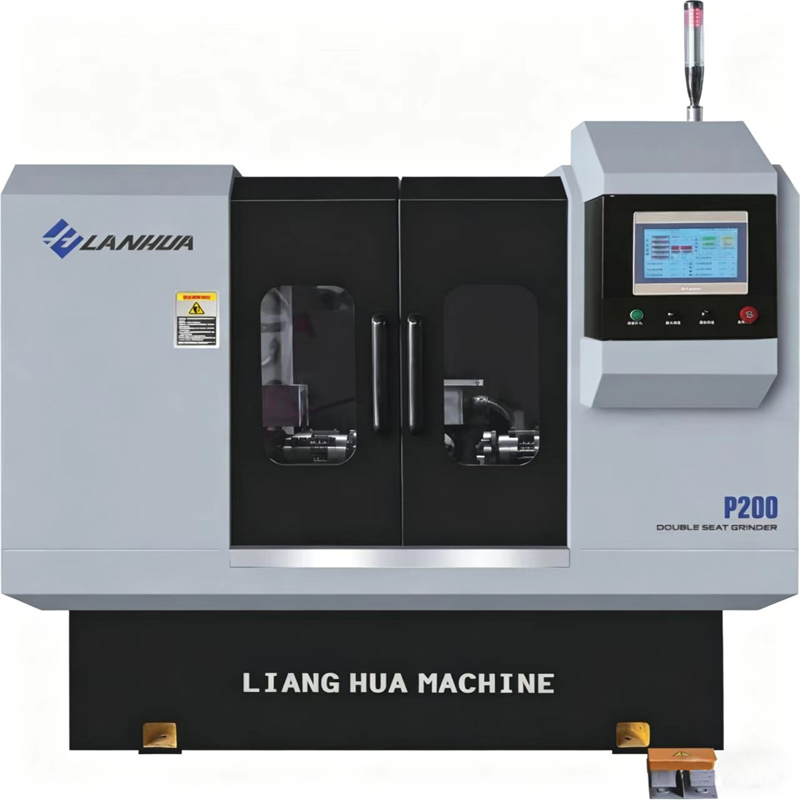

P200 Double Valve Seat Lapping Machine
The P200 Double Valve Seat Lapping Machine is a professional-grade tool designed for precision lapping of double valve seats, ensuring tight seals and optimal engine performance.
Products Description
1. Model: P200.
2. Name: Double valve seat lapping machine.
3. Application: High-precision lapping processing of spheres.
4. precision :100% matching , No leakage between the valve seat and the sphere.
| Technical Parameter | |||
| Item No. | Sub-item | Parameter | |
| 1 | Forming Rotary Axis — |
2 axes | |
| 2 | Machining Range | Bore diameter: 50mm–200mm; Ball diameter SΦ: 75mm–350mm | |
| 3 | Simultaneously Coordinated Axes | 1 axis | |
| 4 | Valve Seat Speed Range | 0–150 rpm | |
| 5 | Spindle Speed Range | 0.5–50 rpm | |
| 6 | Z-axis | Stroke | 200mm |
| 6 | Working Feed Speed | 3–200mm/min | |
| 6 | Repeat Positioning Accuracy | 0.01mm | |
| 7 | X-axis | Stroke | 480mm |
| 7 | Adjustment Range | 0–350mm | |
| 7 | Repeat Positioning Accuracy | 0.01mm | |
| 8 | Roundness | ≤0.015mm | |
| 9 | Z-axis Feed Servo | 0.6KW (Mige) | |
| 10 | Spindle Servo | 10Nm (with 1:60 reducer) (Mige) | |
| 11 | Valve Seat Motor | 0.4kW (1:20 geared motor) | |
| 12 | Control System | PLC Industrial Control (HCFA) | |
| 13 | Lubrication System | Controllable timing and quantitative automatic lubrication | |
| 14 | Overall Dimensions (L×W×H) | 2300mm × 2050mm × 1900mm | |
| 15 | Weight | 4 tons | |
| 16 | Total Positioning Accuracy | 0.01mm | |
